  1. Calibration

Multi Target Lidar-Camera Calibration

PreviousData Collection for Multi Target Lidar-Camera CalibrationNextLidar-Camera Calibration(Old)

Last updated 7 months ago

Calibration Homepage

  • This page lets users view, create, launch, and delete calibration datasets. Admins can manage users’ access to these datasets on this page.

  • Click on New Calibration to create a new calibration dataset.

Calibration selection

Select LiDAR-Camera Calibration to create a new dataset.

Calibration Instructions Page

Upon selecting LiDAR-Camera Calibration, the user is welcomed to the instructions page. Click on Get started to start the calibration setup.

Approach selection

Users can choose either the target-based or the targetless calibration. The target-based calibration uses the checkerboard/charucoboard as the calibration target, and the targetless calibration uses the scene captured in both LiDAR and the camera sensor data.

Configuration

Camera Intrinsic Parameters

Intrinsic parameters for the camera are to be added here. Users have three options.

  • Users can also load the JSON file.

  • Users can manually enter the intrinsic parameters if they already have them.

Target Configuration

Charucoboard target configuration

  • Rows: Total number of squares in the horizontal direction.

  • Columns: Total number of squares in the vertical direction.

  • Square size: It is the length of the arm of the square in meters.

  • Marker size: It is the length of the arm of the aruco marker in meters. This is usually 0.8 times the Square size.

  • Left padding: The distance from the board's left edge to the left of the first square in the row.

  • Right padding: The distance from the board's right edge to the right of the last square in the row.

  • Top padding: The distance from the board's bottom edge to the bottom of the last square in the column.

  • Bottom padding: The distance from the board's top edge to the top of the first square in the column.

  • On ground: Enable this if the checkerboard is placed on the ground and the point cloud has the ground points in the scene around the checkerboard placement.

  • Tilted: Enable this if the charcoboard is tilted.

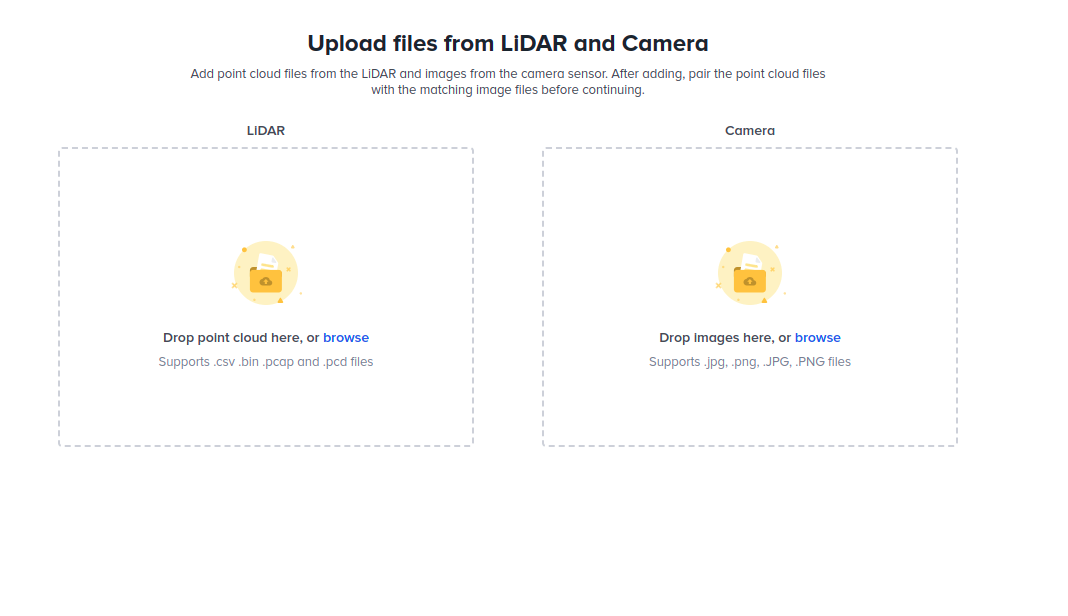

Upload files from LiDAR and Camera

Add point cloud files from the LiDAR and images from the camera sensor. After adding, pair the point cloud files with the matching image files before continuing.

sample CSV format

X, Y, Z
0,-0,-0
62.545,-3.5064,-3.5911
62.07,-3.5133,-4.1565
32.773,-1.8602,-3.4055

Detect target corners in images

Our algorithms automatically detect corners in the charucoboards

Estimated extrinsic parameters

LiDAR frame and Target selection for mapping

  1. Click on Change next to the lidar file to select the file for mapping

  2. Click on Change next to the Target to select the target for mapping

Map target in point cloud

The extrinsic parameter space is vast, so we need an estimated entry point for optimization. The user can provide estimated extrinsic parameters in three ways.

Mapping of target corner points

Users can map the target corner points in the point cloud and get the initial estimates of the extrinsic parameters. Only one point cloud mapping is sufficient to get the initial estimates.

Auto detect target

Our algorithms can automatically detect targets in the point cloud if the lidar channel data is provided on the configuration page. Please note that the auto-detection might not work properly if there are many flat surfaces, like walls, ceilings, etc., in the scene.

Add estimated extrinsic parameters

Users can manually enter estimated extrinsic parameters.

Verifying the accuracy of the estimated extrinsic parameters

Estimated extrinsic parameters are crucial in generating accurate extrinsic parameters.

To get good initial estimates, users must clear the markers and redo the markings if the estimated parameters are way off.

Run calibration

Users need to click on Calibrate to optimize the estimated extrinsic parameters further. All the uploaded pairs are used in the optimization process.

Additional options in the run calibration

Deep Optimization: Users can select deep optimization to optimize the extrinsic further for datasets with the Tilted option enabled on the configuration page.

Max correspondence: This value is used as input for the algorithm. Users can tweak the value by analyzing the fused point cloud LiDAR files. Suppose the difference between the input and the generated cloud is more significant; the user can try to increase the value of the max correspondence and retry to improve the calibration results.

Error stats

Users can use these error values to estimate the accuracy of the calibration results alongside visual confirmation. The closer the error stats to zero, the better the extrinsic parameters.

  • Translation Error: Mean of difference between the centroid of points of checkerboard in the LiDAR and the projected corners in 3D from an image. Values are shown in meters. This calculation happens in the LiDAR coordinate system. Note: If the board is only partially covered by the LiDAR, this value is inaccurate due to the error in the position of the centroid.

  • Plane Translation Error: Mean of the Euclidean distance between the centroid of projected corners in 3D from an image and plane of the target in the LiDAR. Values are shown in meters. Note: If the board is only partially covered by the LiDAR or the LiDAR scan lines are non-uniformly distributed, translation and reprojection errors are inaccurate, but this plane translation error is accurate even in these scenarios.

  • Rotation Error: Mean difference between the normals of the target in the point cloud and the projected corners in 3D from an image. Values are shown in degree. This calculation happens in the LiDAR coordinate system. Note: All LiDARs have noise when measuring distance. This will, in turn, cause noise in the target's point clouds and the target's normals. Usually, this metric cannot measure accurately below 1 degree. For an accurate rotation error, we suggest using a faraway straight edge such as a building edge, roofline, or straight pole and projecting the point cloud onto the image. The rotation error can be calculated from the number of pixels between the image edges and the projected points.

  • Reprojection Error: Mean difference between the centroid of the target corners from the image and the centroid of the projected target from the LiDAR space onto the image. This is calculated in the image coordinate system. Note: If the board is only partially covered by the LiDAR, this value is inaccurate due to the error in the position of the centroid.

  • Individual error stats for each image/LiDAR pair can be seen. The average shows the mean of the errors of all the eligible image/LiDAR pairs.

Download calibration parameters

Once the entire calibration is done, users can download all intrinsic and extrinsic parameters by clicking the Export button in the header.

Analyzing the extrinsic parameters in Visualization Mode:

Sensor fusion techniques

Users can use the following techniques to visualize the extrinsic parameters.

Frustum: Users can see the image's field of view in the LiDAR frame. This uses both the camera matrix and the extrinsic parameters. Image axes are also displayed according to the extrinsic parameters.

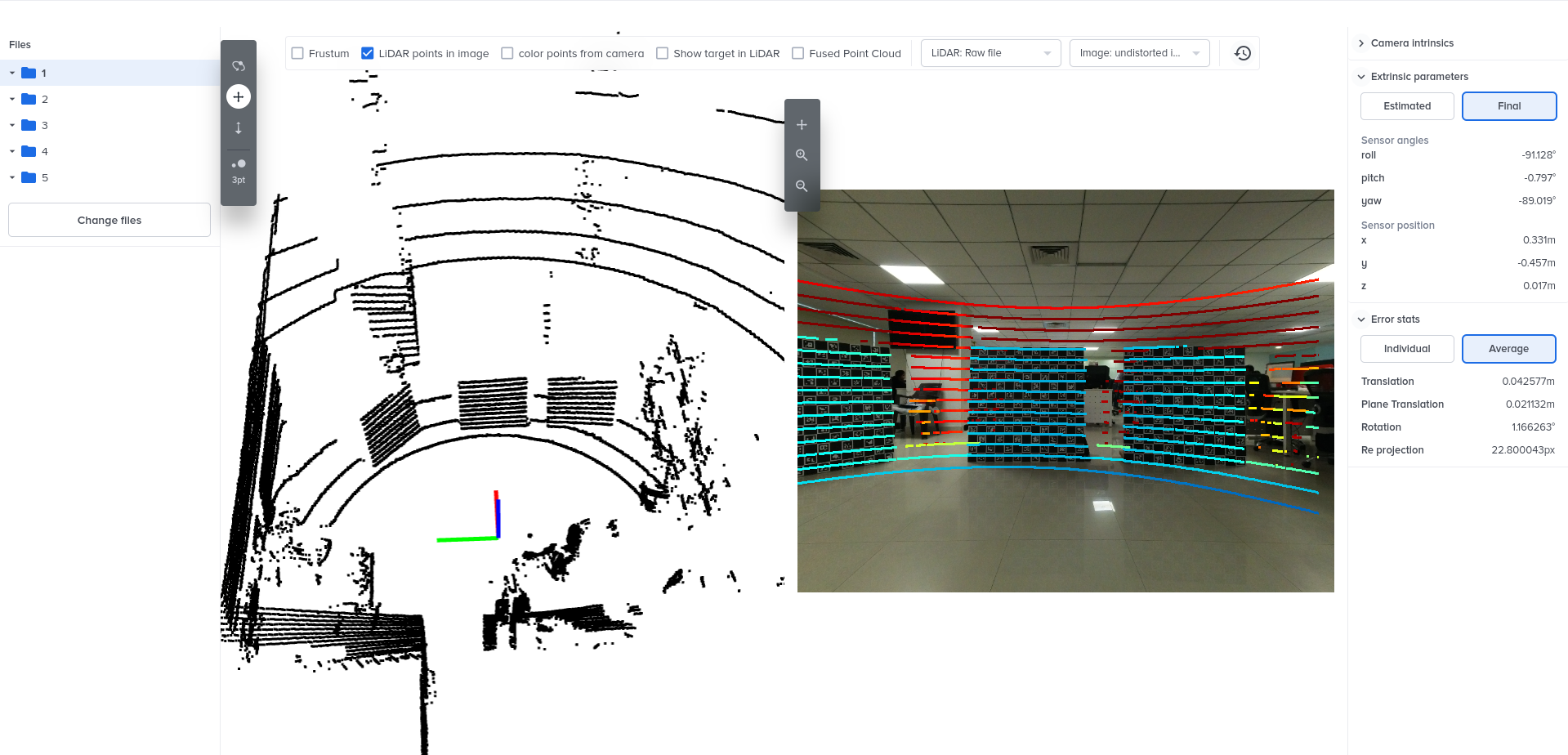

LiDAR points in image: Users can see the LiDAR points projected in the camera image using extrinsic parameters.

color points from camera: Users can see the camera's color points in the lidar space using the extrinsic parameters.

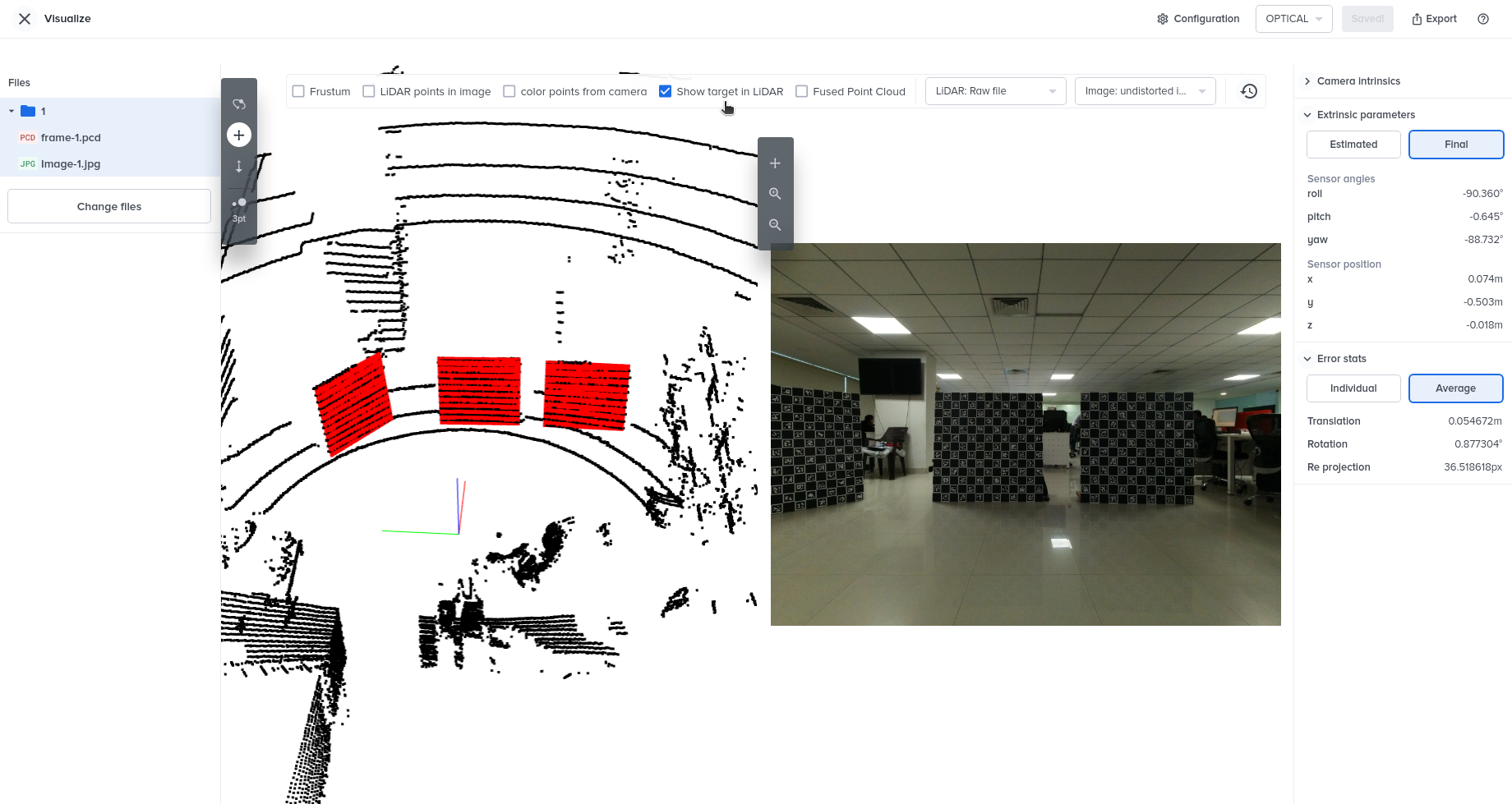

  • Show target in LiDAR: Users can see the checkerboard points projected in the LiDAR frame using the extrinsic params.

Image: Target Identification

The target in the image is filled with points. If the target configuration the user provides is correct, there will be no overflow or underflow.

LiDAR: Extracted target

This shows the extracted target from the original lidar file. We use this to calculate the error statistics. We compare the extracted target with the projected target.

Fused Point Cloud:

Targets from all the point clouds are cropped and fused into a single point cloud.

  • Input cloud: This contains the fuse of all input clouds filtering the target area. If the target is not in the LiDAR file, the user has to fix the extrinsic parameters by going back to the mapping step or manually updating them.

  • Generated target: This contains the fuse of all generated targets. If the target is inaccurate, the user has to fix the target configuration or the inner corner detection.

  • Input and generated target: This contains the fused output of the Input cloud and Generated target. This helps us to analyze the difference between the input and the generated output before optimization.

  • Target begin vs after optimization: This helps to know the difference between the generated target, using the extrinsic values before and after the optimization step.

Extrinsic Calibration Output:

  • roll, pitch, and yaw are in degrees, and px, py, and pz are in meters.

  • lidarPoint3D is the 3d coordinates of a point in the lidar coordinate system.

  • imagePoint3D is the 3d coordinates of a point in the camera coordinate system.

Camera coordinates system

We currently show three different types of camera coordinate systems. The extrinsic parameters change according to the selected Camera coordinate system. The export option exports the extrinsic parameters based on the selected camera coordinate system.

  • Optical coordinate system: It's the default coordinate system that we follow.

  • ROS REP 103: This is the coordinate system followed by ROS. When you change to this, you can see the change in the visualization and the extrinsic parameters.

  • NED: This follows the North-East-Down coordinate system.

Sample Script

This is a sample Python script to project lidar points on an image using extrinsic parameters. It uses the open3d and opencv libraries.

Users can use the Camera Intrinsic calibration tool to calibrate the results, save them to the profile, and then load them here. For more details, .

Once the estimated extrinsic parameters are in the tool, users can visualize the parameters by clicking on the visualize button. In the visualization, we have a few sensor fusion techniques through which the accuracy of the extrinsic parameters can be visualized. For more details, visit .

click here
Tool usage guide for old UX
2KB
project_lidar_points_to_image.py
Select Target approach
Camera input section in Configuration page
Select Target count = Multi
Click on Continue
Click on Add marker
Mark four points as shown in the right panel and click on Done
Click on Auto-detect target
Click on Add estimated extrinsic parameters
Provide estimated Sensor angles and Position and click on Done
Click on Calibrate
Sensor fusion techniques
